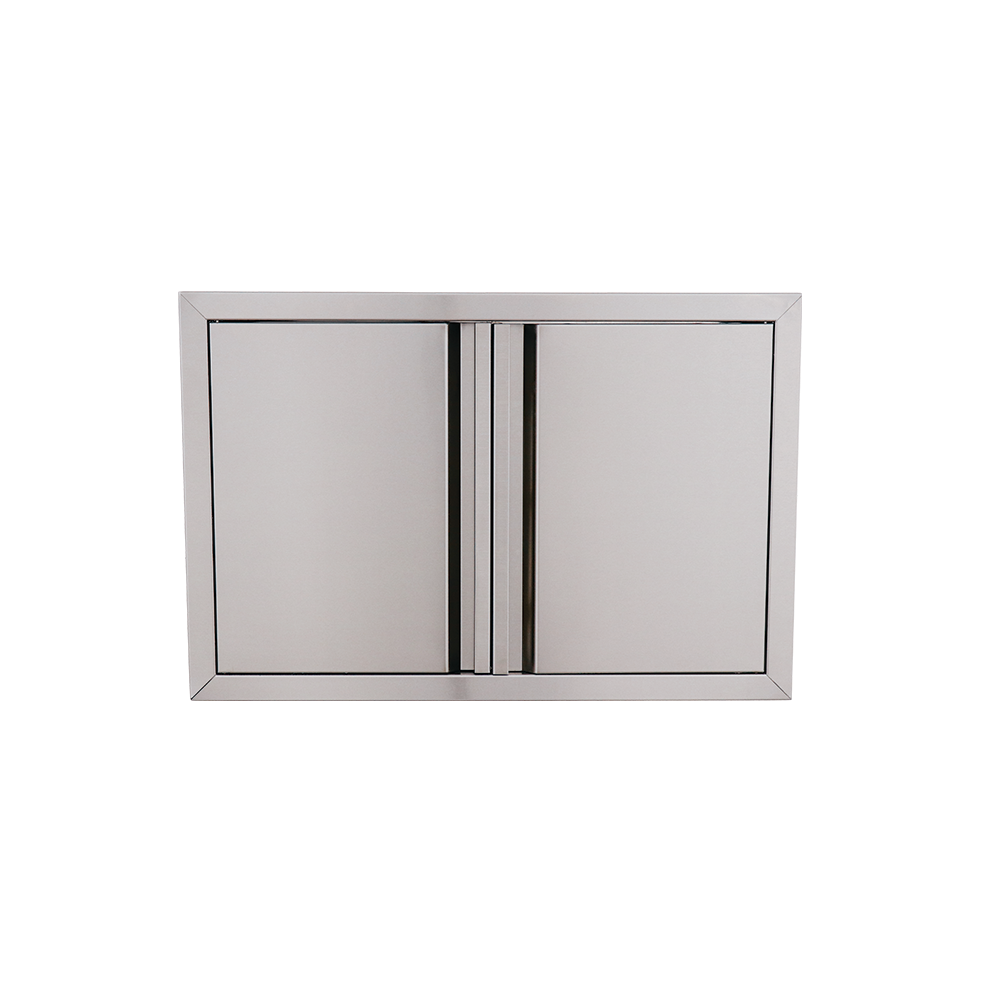

The Valiant Series Dry Pantry

• Model Number: VDP1
• Series: Valiant
• 304 Stainless Steel
• Double Lined Doors
• Fully Enclosed
• Shelf Included
• Inside Dimension No Shelf: 26-1/4" wide x 15-15/16" high X 18-3/4" deep
• Overall Lip: 32-13/16" wide X 22" high
• Cut-Out: 30 1/2" Wide x 21" Deep x 19 1/2" High

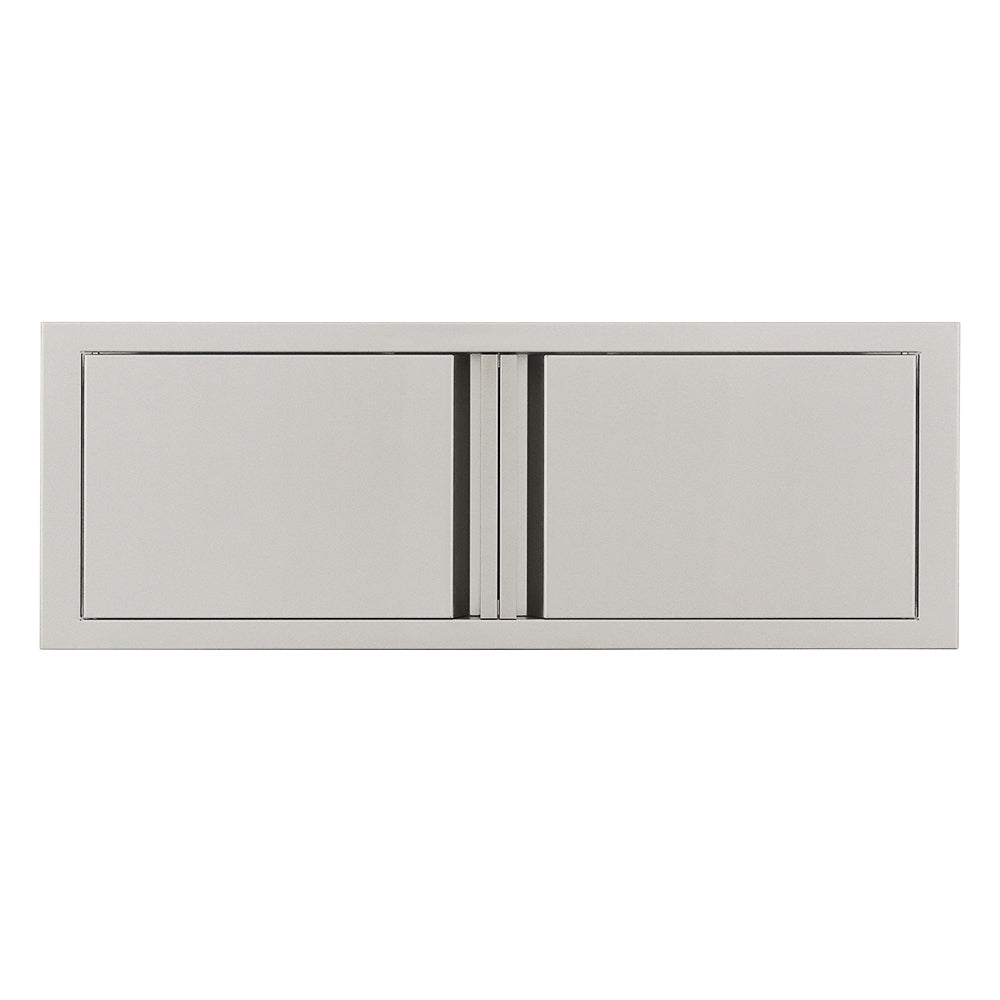

The Valiant Series 45" Low Profile Double Door

• Model Number: VDD4
• Series: Valiant Series
• 304 Stainless Steel
• Double Lined Door
• Doors Swing A Full 90 Degrees for Complete Access to your cabinet Opening
• Recessed Handles
• Lifetime Warranty
• Line Drawing
• Cut Out: 42-1/4" Wide x 13-1/4" High
• Overall Size: 44-3/4"Wide x 16" High

The Valiant Series 33" Low Profile Double Door

• Model Number: VDD3
• Series: Valiant Series
• 304 Stainless Steel
• Low Profile/Reduced Height
• Double Lined Door
• Doors Swing A Full 90 Degrees for Complete Access to your cabinet Opening
• Recessed handles
• Lifetime Warranty
• Line Drawing
• Cut Out: 30-1/4" Wide x 13-1/4" High
• Overall Size: 32-3/4" Wide x 16" High

The Valiant Series Double Door Large

The VDD2 double door is the perfect addition to your RCS outdoor kitchen for storing tools, utilities, or a propane tank. The VDD2 features double-lined 304 stainless steel construction for maximum strength and protection.

• Model Number: VDD2
• Series: Valiant Series
• 304 Stainless Steel
• Double Lined Door
• Doors Swing A Full 90 Degrees for Complete Access to your cabinet Opening
• Recessed handles
• Lifetime Warranty
• Line Drawing

Cut Out: 42 1/2" Wide x 19 1/2" High

Overall Dimensions: 44 7/8" Wide x 22" High

The Valiant Series Horizontal Door

To enhance the design and function of your outdoor kitchen the VDH1 fully enclosed horizontal door is convenient for storing tools and utensils. The horizontal door features double-lined 304 stainless steel for maximum strength and durability. The recessed handles allows for either left or right installation.

• Model Number - VDH1
• Series: Valiant
• 304 Stainless Steel
• Double Lined Door
• Door Swings A Full 90 Degrees for Complete Access to your cabinet Opening
• Reversible: Swing Left or Swing Right
• Line Drawing

Cut Out: 24 1/2" Wide x 17 1/2" High

Overall Dimensions: 27" Wide x 20" High

The Valiant Series Vertical Door

To enhance the design and function of your outdoor kitchen, the VDV1 vertical door is convenient for getting beneath your cabinet. The vertical door features double-lined door and constructed with 304 stainless steel for maximum strength and durability. The recessed handles allow for either left or right installation.

• Model Number: VDV1
• 304 Stainless Steel
• Double Lined Door
• Door Swings A Full 90 Degrees for Complete Access to your cabinet Opening
• Reversible Door - Swings Left & Swings Right
• Inside Dimension: 12-7/8" wide X 17-3/4" high
• Line Drawing

Cut Out: 14-1/2" Wide x 19-1/2" High

Overall Dimensions: 17" Wide x 22" High

The Valiant Series Large Vertical Door

To enhance the design and function of your outdoor kitchen the VDV2 large vertical door is convenient for accessing underneath the cabinet. The vertical door features double-lined 304 stainless steel for maximum strength and durability. The recessed handles allow for either left or right installation.

• Model Number: VDV2
• 304 Stainless Steel
• Double Lined Door
• Door Swings A Full 90 Degrees for Complete Access to your cabinet Opening
• Reversible Door: Swing Left or Swing Right
• Line Drawing
• Cut Out: 17 1/2" Wide x 24 1/2" High
• Overall Dimensions: 20" Wide x 27" High
• Inside Door Size: 14-3/4" Wide X 23-7/8" High

The Valiant Series Double Drawer w/ Door Combo

To enhance the design and function of your outdoor kitchen the VDC1 fully enclosed double drawer and door combo is perfect for storing tools, utensils, or a propane tank. The drawer/door combo features double-lined 304 stainless steel for maximum strength and durability.

• Model Number: VDC1
• Series: Valiant Series
• 304 Stainless Steel
• Double Lined Door
• Soft Close Drawers
• Reversible Layout
• Fully Enclosed Drawers
• Door Swings A Full 90 Degrees for Complete Access to your cabinet Opening
• Lifetime Warranty
• Line Drawing
• Overall Size: 32-3/4" Wide X 22" High
• Cut Out: 30-1/2" Wide x 22" Deep x 19-1/2" High

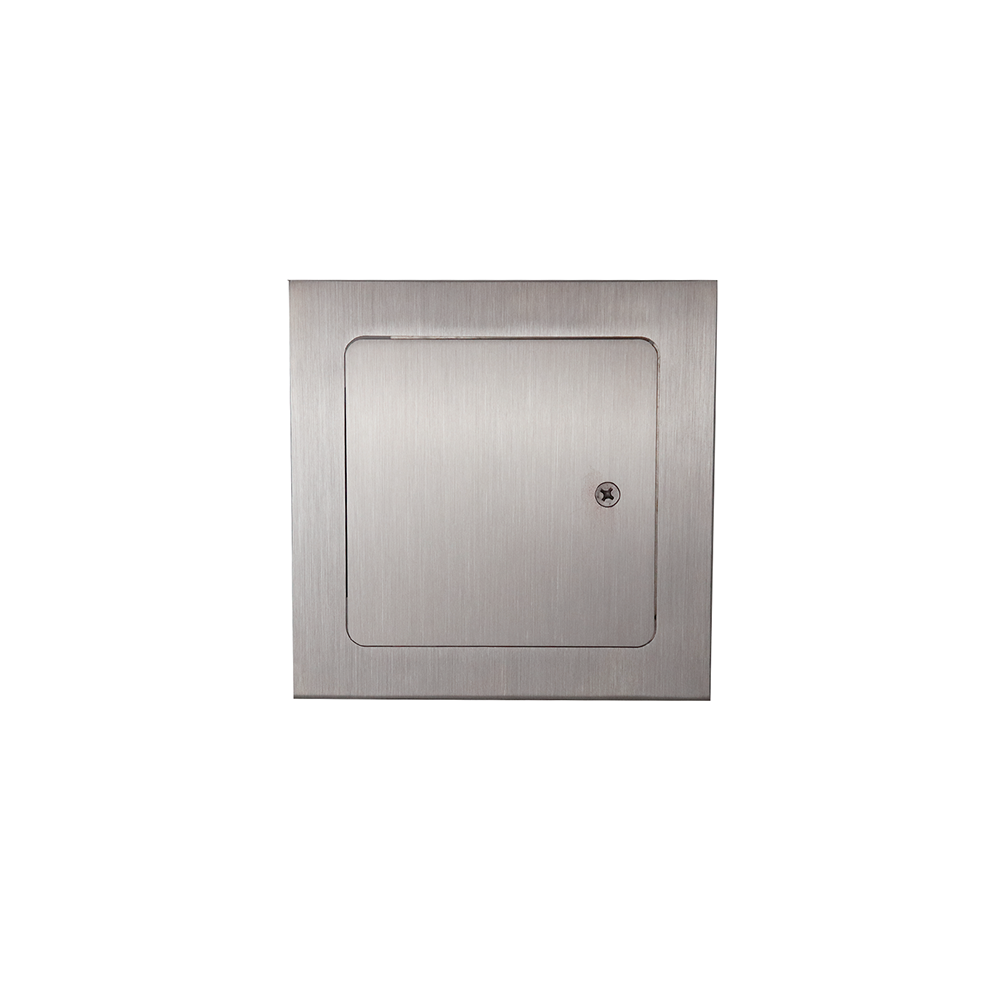

The RCS RAD66 recessed door is perfect for storing and accessing valves, controls and timers. The door features 304 stainless steel for maximum strength and durability.

• Model Number: RAD66
• Size: 6" x 6"
• 304 Stainless Steel
• Philips Head Screw Driver Lock

Cut Out: 6 1/2" Wide x 6 3/8" High

Overall: 7 5/8" Wide x 7 5/8" High x 2" Deep

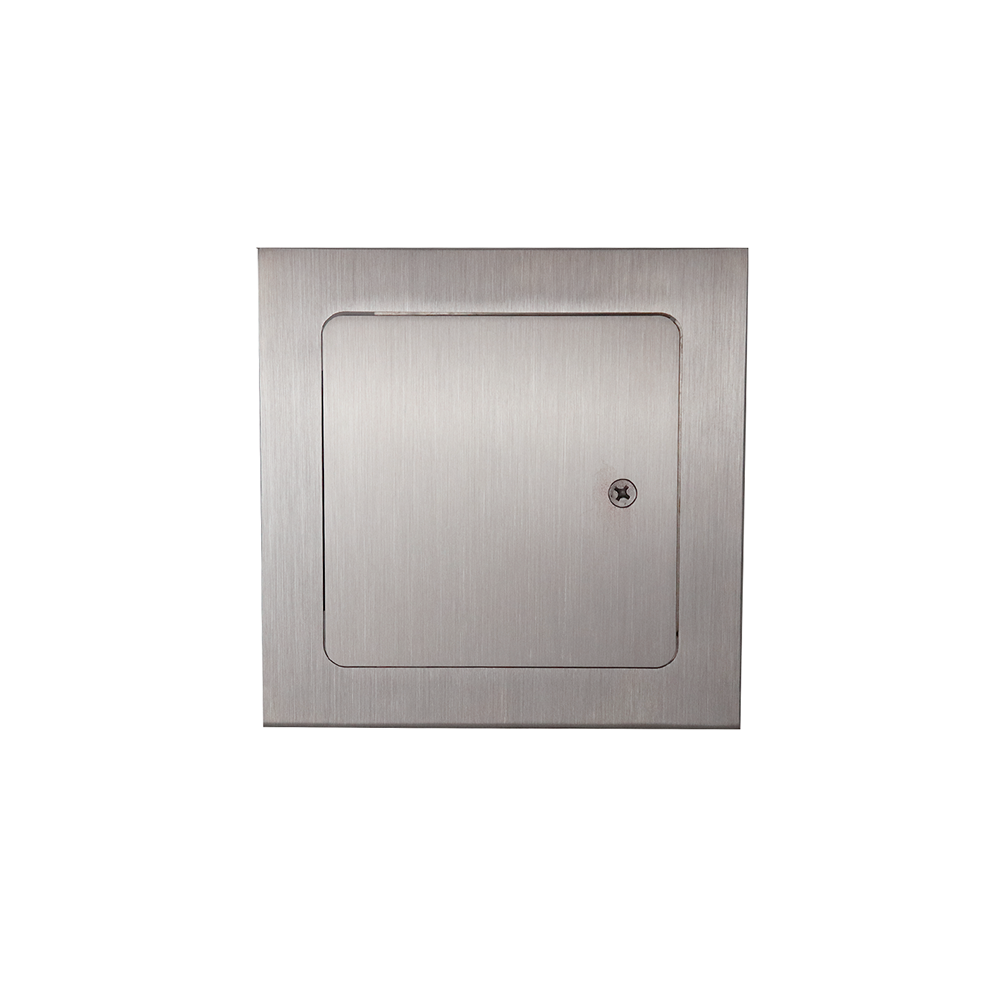

The RCS RAD88 recessed door is perfect for storing and accessing valves, controls and timers. The door features 304 stainless steel for maximum strength and durability.

• Model Number: RAD88
• Size: 8" x 8"
• 304 Stainless Steel
• Philips Head Screw Driver
• Overall Size: 9 5/8" Wide x 9 5/8" High x 2" Deep
• Cut Out: 8 5/8" Wide x 8 3/8" High

Stainless Steel Ventilation Panel

To ensure the safety and protection of your outdoor kitchen, kitchen vents (RVNT1) are required every 4 feet. These help ventilate and prevent dangerous gas build up in your outdoor kitchen. Ventilation panels are also great at venting traces of gas out of the cabinet, remove excess heat, adds air to help with the air/fuel mix for the grills, and allow moisture / condensate to evaporate.

• Model Number: RVNT1
• 19 Gauge Stainless Steel
• 1 Required every 4 feet.
• Overall Size: 14" wide X 4-1/2" high
• Cut Out: 12-1/2" wide x 3-1/2" high

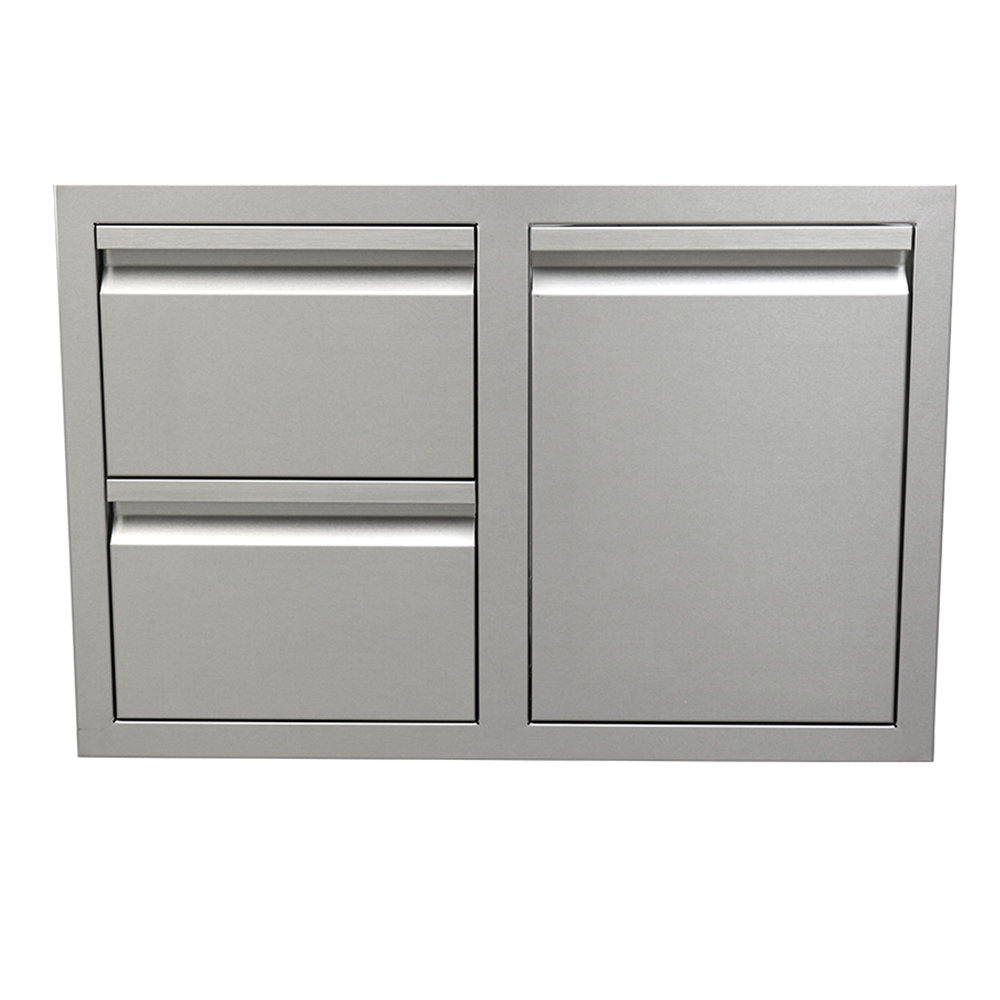

The Valiant Series Dual Drawer / Propane Drawer Combo

• Model Number: VDCL1
• Series: Valiant Series
• Insulated Body
• 304 Stainless Steel Lid
• Soft Close Drawers

• Enclosed Drawers / Open Propane Drawer

• Line Drawing
• Cut Out: 30 1/2" Wide x 20 3/4" Deep x 19 1/2" High
• Lifetime Warranty

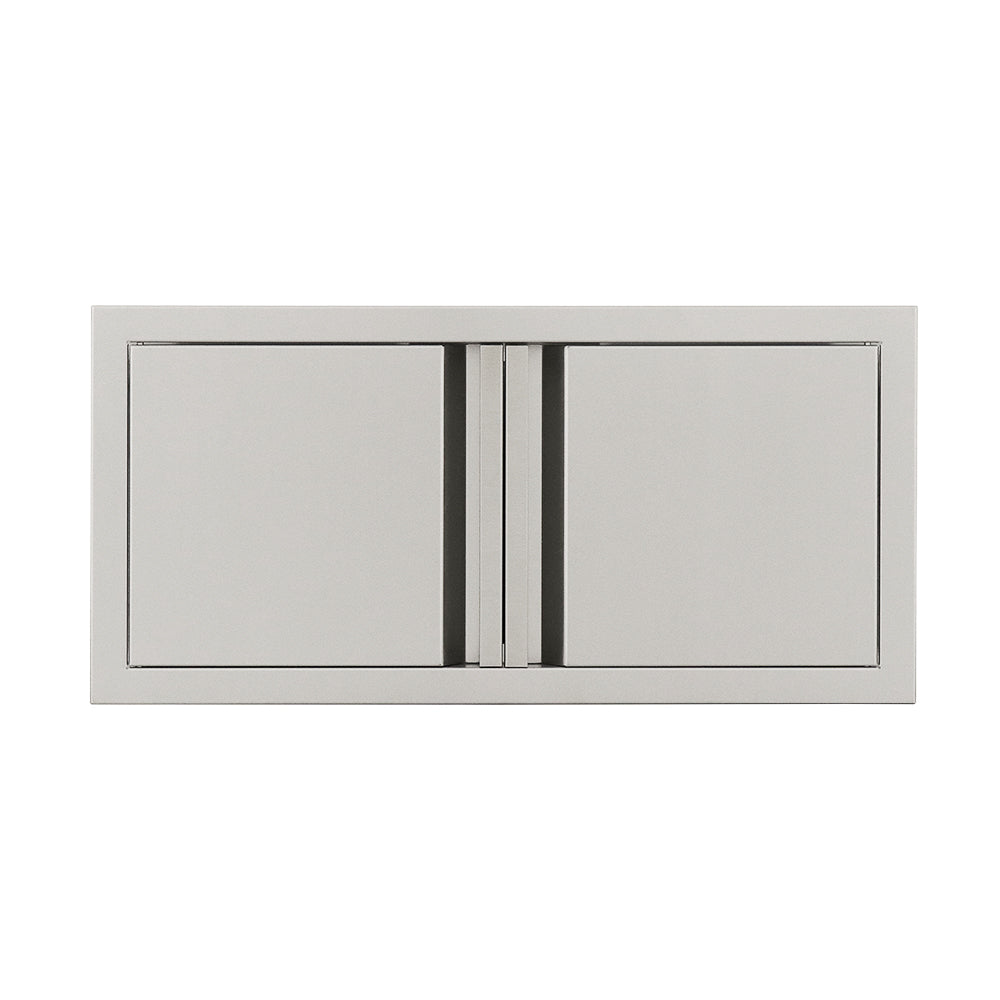

The Valiant Series 33" Low Profile Double Door - Soft Close

• Model Number: VDD3SC
• Series: Valiant Series
• 304 Stainless Steel
• Low Profile/Reduced Height
• Soft Close Doors
• Double Lined Doors
• Doors Swing A Full 90 Degrees for Complete Access to your cabinet Opening
• Recessed handles

• Line Drawing
• Cut Out: 30-1/4" Wide x 13-1/4" High
• Overall Size: 32-3/4" Wide x 16" High

• Lifetime Warranty

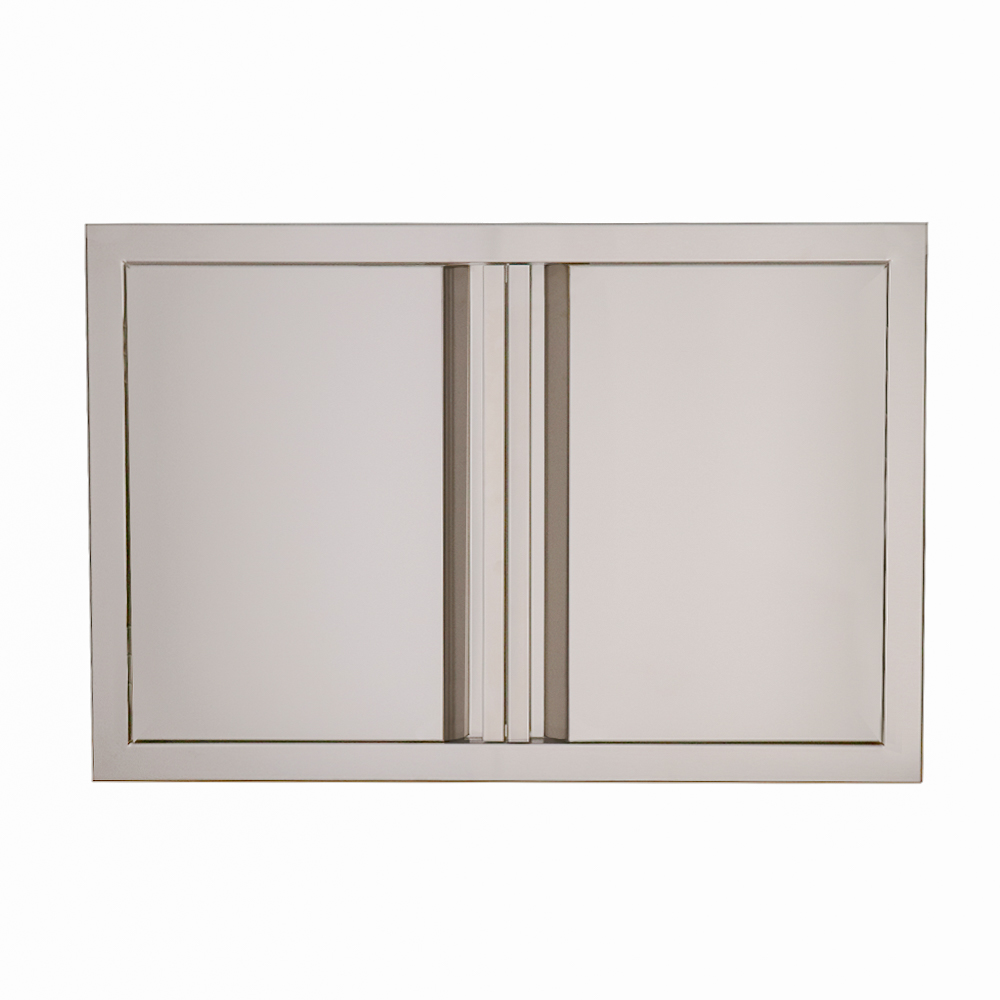

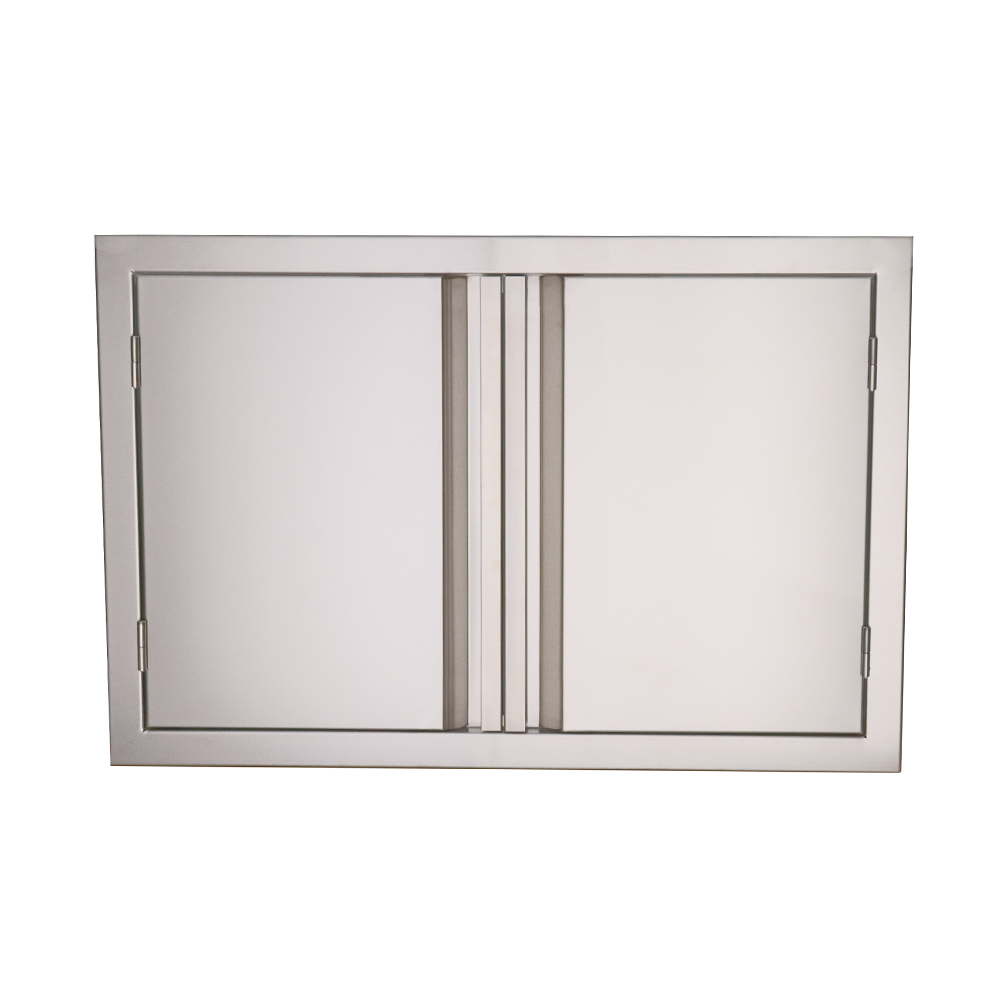

The Valiant Series Double Door - Soft Close

The VDD1SC double door is the perfect addition to your RCS outdoor kitchen for storing tools, utilities, or a propane tank. The VDD1SC features double-lined 304 stainless steel construction for maximum strength and protection.

• Model Number: VDD1SC
• Series: Valiant Series
• 304 Stainless Steel
• Soft-Close Doors
• Double Lined Door
• Doors Swing A Full 90 Degrees for Complete Access to your cabinet Opening
• Recessed handles

• Line Drawing
• Cut Out: 30-1/2" Wide x 19-1/2" High
• Overall Dimensions: 33" Wide x 22" High
• Lifetime Warranty

*** VDD1SC is newest version of discontinued door VDD1

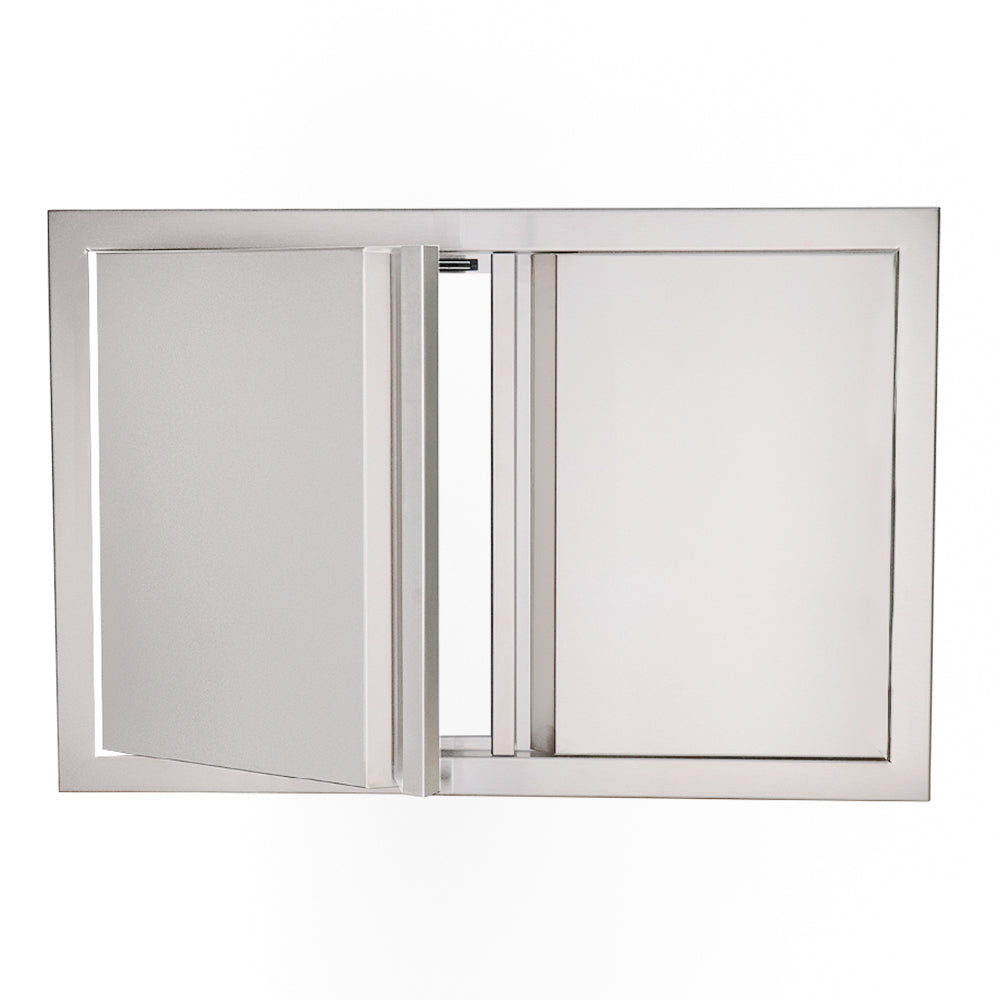

The Valiant Series Double Door Large - Soft Close

The VDD2SC double door is the perfect addition to your RCS outdoor kitchen for storing tools, utilities, or a propane tank. The VDD2SC features double-lined 304 stainless steel construction for maximum strength and protection.

• Model Number: VDD2SC
• Series: Valiant Series
• 304 Stainless Steel
• Double Lined Doors
• Soft Close Hinges
• Doors Swing A Full 90 Degrees for Complete Access to your cabinet Opening
• Recessed handles
• Line Drawing
• Cut Out: 42-1/2" Wide x 19-1/2" High
• Overall Dimensions: 44-7/8" Wide x 22" High
• Lifetime Warranty

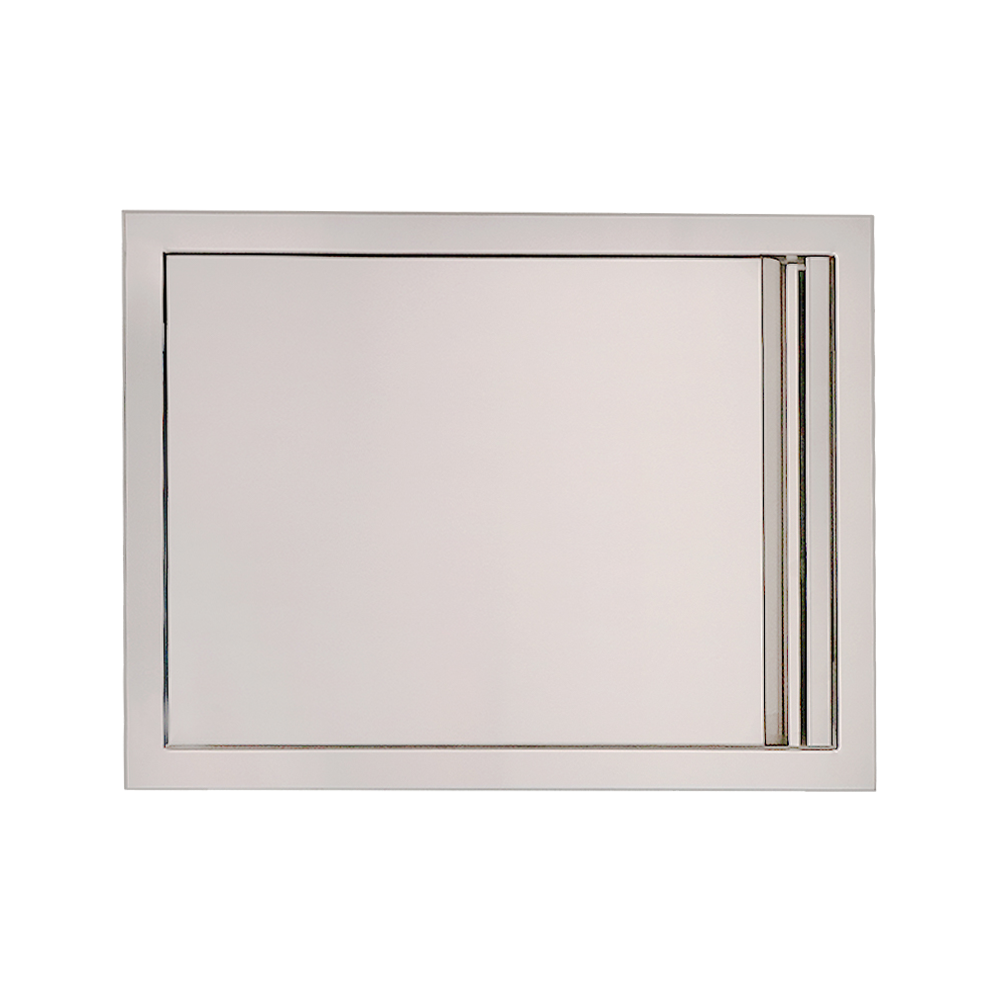

The Valiant Series Horizontal Door - Soft Close

To enhance the design and function of your outdoor kitchen the VDH1 fully enclosed horizontal door is convenient for storing tools and utensils. The horizontal door features double-lined 304 stainless steel for maximum strength and durability. The recessed handles allows for either left or right installation.

• Model Number: VDH1SC(L/R)
• Series: Valiant
• 304 Stainless Steel
• Double Lined Door
• Soft Close Hinges
• Door Swings A Full 90 Degrees for Complete Access to your cabinet Opening

• Line Drawing
• Cut Out: 24 1/2" Wide x 17 1/2" High
• Overall Dimensions: 27" Wide x 20" High
• Lifetime Warranty

The Valiant Series Vertical Door - Soft Close

To enhance the design and function of your outdoor kitchen, the VDV1SC vertical door is convenient for getting beneath your cabinet. The vertical door features double-lined door and constructed with 304 stainless steel for maximum strength and durability. The recessed handles allow for either left or right installation.

• Model Number: VDV1SC(L/R)
• 304 Stainless Steel
• Double Lined Door
• Soft Close Hinges
• Door Swings A Full 90 Degrees for Complete Access to your cabinet Opening

• Inside Dimension: 12-7/8" wide X 17-3/4" high
• Line Drawing
• Cut Out: 14-1/2" Wide x 19-1/2" High
• Overall Dimensions: 17" Wide x 22" High
• Lifetime Warranty

The Valiant Series Large Vertical Door - Soft Close

To enhance the design and function of your outdoor kitchen the VDV2SC large vertical door is convenient for accessing underneath the cabinet. The vertical door features double-lined 304 stainless steel for maximum strength and durability. The recessed handles allow for either left or right installation.

• Model Number: VDV2SC(L/R)
• 304 Stainless Steel
• Double Lined Door
• Soft Close Hinges
• Door Swings A Full 90 Degrees for Complete Access to your cabinet Opening

• Line Drawing
• Cut Out: 17-1/2" Wide x 24-1/2" High
• Overall Dimensions: 20" Wide x 27" High
• Inside Door Size: 14-3/4" Wide X 23-7/8" High
• Lifetime Warranty
