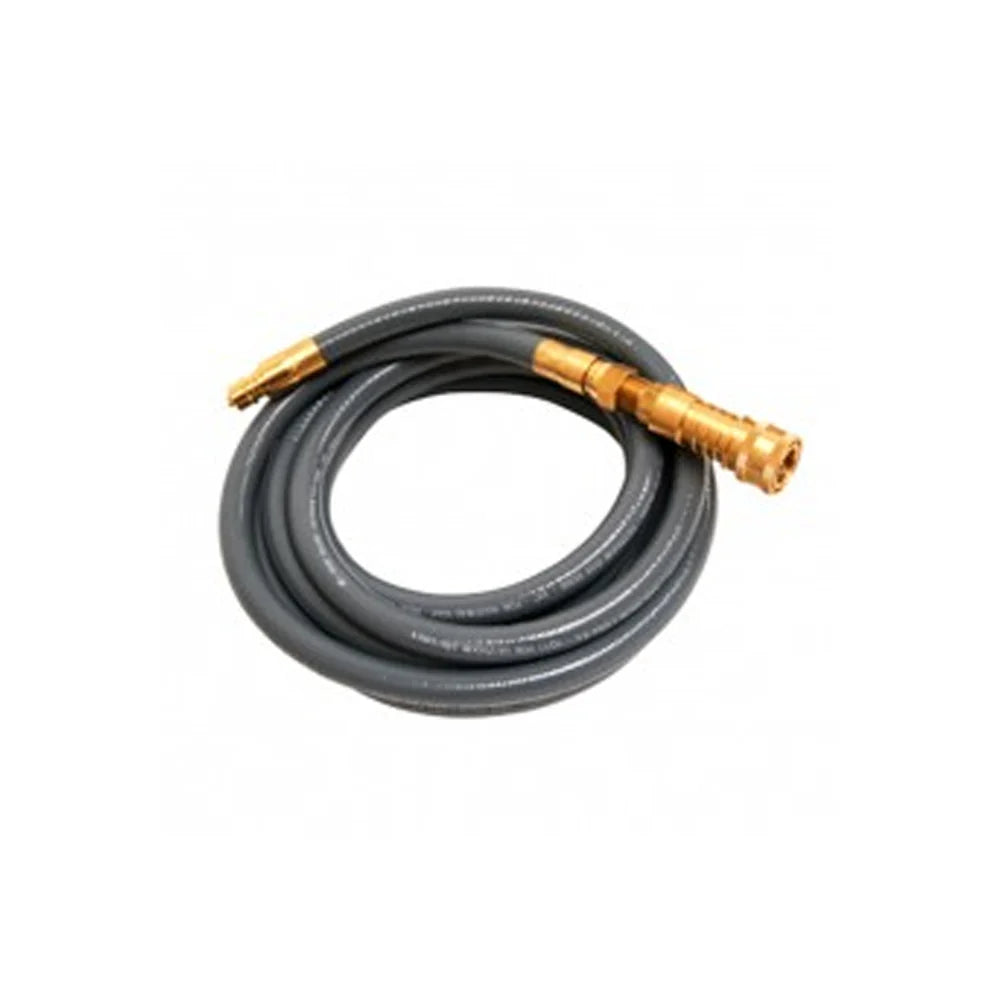

12' Natural / Propane Gas Hose Assembly -

• Item Number: GHK144
• 3/8" Female Pipe Thread W/ Quick Connect & 3/8" Male Pipe Thread
• 12' Rubber hose

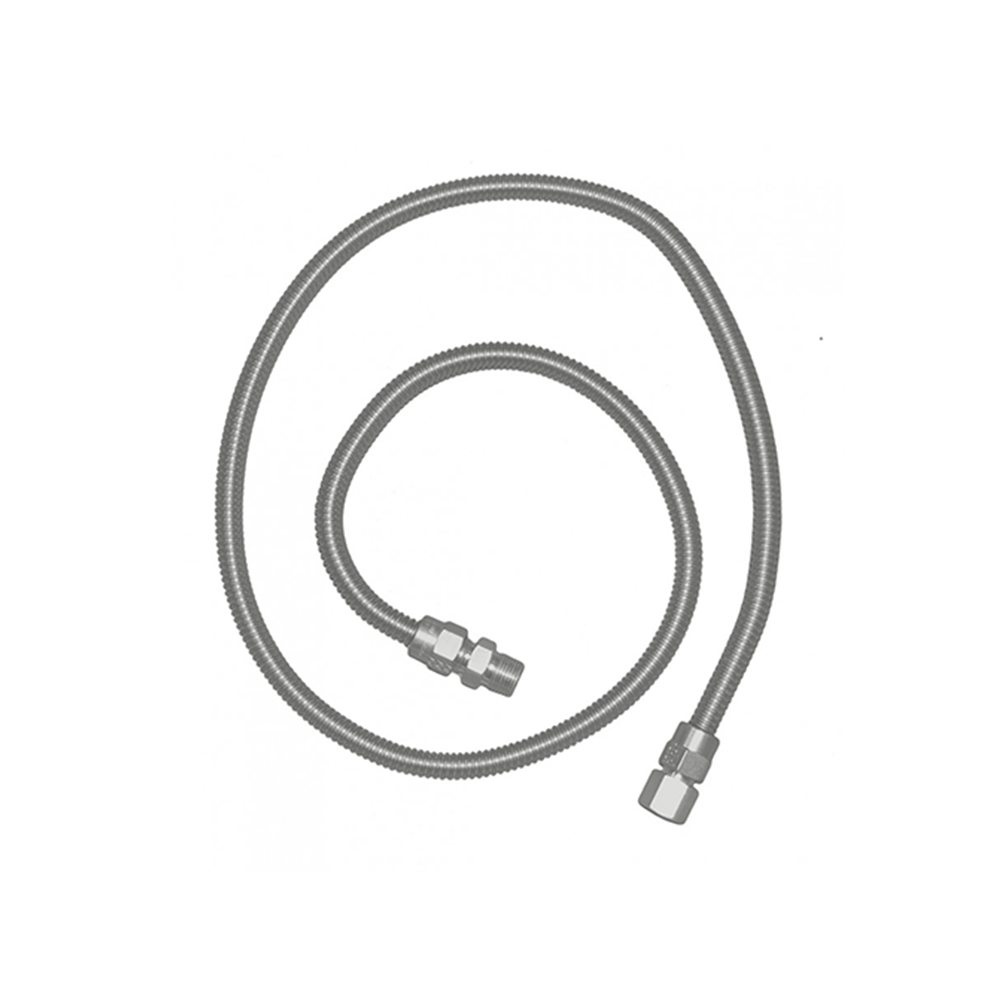

36" Stainless Steel Flex Hose with 1/2" Flare Fittings

To connect your RCS built-in grill or side burner to your natural or propane gas supply the RCS 36-inch flex hose is needed. The hose is a 1/2" inch with 1/2" female flare nuts on one end. The hose is made of stainless steel and is 36 inches long.

• Model Number: SSFLEX8436
• Stainless Steel
• 36" Long
• 71,100 BTU Capacity
• 1/2" Female Flare Nuts X 3/8" ID

• 2 Fittings Included: 1/2" Male Flare X 1/2" MIP

The 48" Stainless Steel Flex Hose

To connect your RCS built-in gas grill to your natural or propane gas supply the RCS 48-inch flex hose is needed. The hose is a 1/2" inch with 1/2" female flare nuts on one end. The hose is made of stainless steel and is 48 inches long.

• Model Number: SSFLEX8448
• Stainless Steel
• 48" Long
• 60,500 BTU Capacity
• 1/2" Female Flare Nuts X 3/8" ID
• 2 Fittings Included: 1/2" Male Flare X 1/2" MIP

One Hour Gas Timer Shut Off Valve

• Model Number: RGT1
• 60 Minutes / 1 Hour Timer
• 1/2" Female NPT
• 100,000 MAX BTU Capacity
• Maximum Working Pressure: 1/2 P.S.I.G.
• 3 Mounting Holes
• Note: Gas Valve only, Timer Mounting Box (RTB1) Sold Separately.

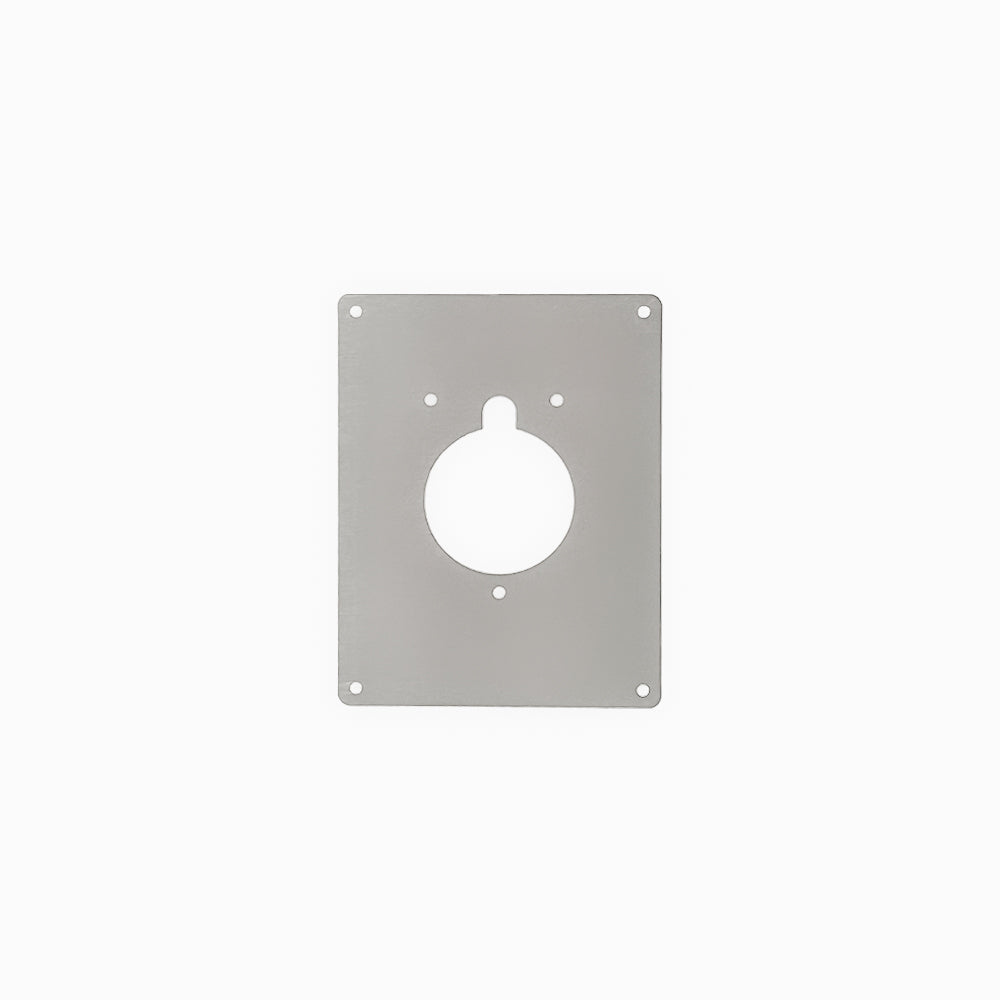

The Valiant Series Gas Timer Mounting Plate

• Model Number: RTB1P
• Series: Valiant
• 304 Stainless Steel
• Plate Only (Gas Timer Sold Separately - See Here)
• 4 Mounting Holes
• 3 Timer Mounting Holes
• Lifetime Warranty
• Overall Size: 5" Wide x 6-1/2" High

Stainless Steel Ventilation Panel

To ensure the safety and protection of your outdoor kitchen, kitchen vents (RVNT1) are required every 4 feet. These help ventilate and prevent dangerous gas build up in your outdoor kitchen. Ventilation panels are also great at venting traces of gas out of the cabinet, remove excess heat, adds air to help with the air/fuel mix for the grills, and allow moisture / condensate to evaporate.

• Model Number: RVNT1
• 19 Gauge Stainless Steel
• 1 Required every 4 feet.
• Overall Size: 14" wide X 4-1/2" high
• Cut Out: 12-1/2" wide x 3-1/2" high

Propane Hose & Regulator

The Propane Hose and Regulator has a 3/8 flare fitting on one end and POL to screw on the outside thread of your propane tank.

• Model Number: RONHK
• Fittings: 3/8" Female Flare & POL Fitting
• 18" Rubber Hose
• Low Pressure

The Valiant Series Timer Mounting Box Kit

• Model Number: RTB1
• Series: Valiant
• 304 Stainless Steel
• Locking Door (Flathead Screwdriver Lock)
• Timer Box & Mounting Plate Included
• Lifetime Warranty
• Cut Out: 6-1/2" Wide x 6-1/2" High
• Outside Lip Overall Size: 8-3/4" Wide x 8-3/4" High

Note: Gas Timer Not Included - See RGT1 for timer
